2091-1408/205-000 | WAGO

Pin header, 8 pole, pitch 3.5 mm, straight, light gray, 2091-1408/205-000

Order No.: 43P3861
EAN: 4050821412090
MPN:
2091-1408/205-000
Series: 2091

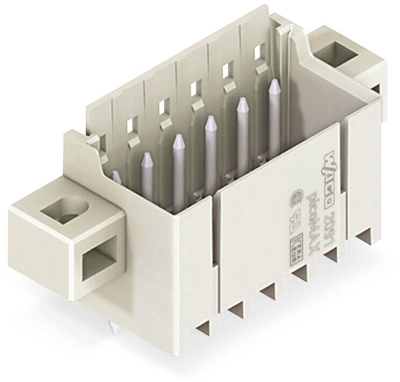

2091-1408/205-000 WAGO PCB Connection Systems Image 1

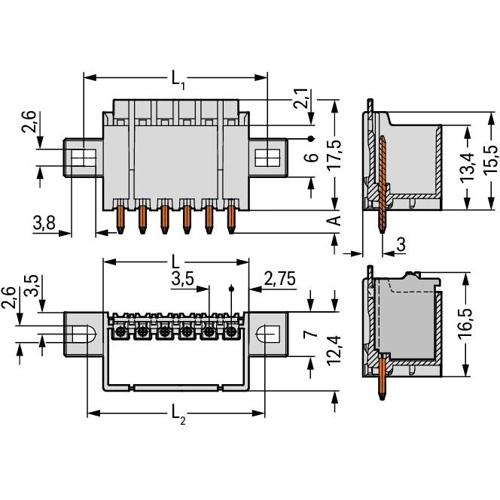

2091-1408/205-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.0587 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0587 €

Male header, 2091-1408/205-000, Wago

male header with straight solder pins and mounting flanges 8 poles grid spacing 3,5 mm / 0.138 in light grey

Technical specifications
Filter Property Value
Rated current 10 A
contact surface tin-plated
Colour light gray
Additional parts equipped
Contact type pin
Connection plating tin-plated
Grid 3.5 mm
Orientation straight
Rated voltage 160 V
Connection solder pin
Pin number 8 pole
Version pin header
Type of locking Yes
Number of rows 1
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
