2091-1403/005-000 | WAGO

Pin header, 3 pole, pitch 3.5 mm, straight, light gray, 2091-1403/005-000

Order No.: 43P3844
EAN: 4050821161448
MPN:
2091-1403/005-000
Series: 2091

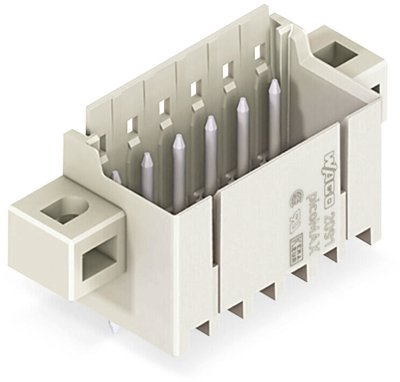

2091-1403/005-000 WAGO PCB Connection Systems Image 1
2091-1403/005-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0591 €

Male header, 2091-1403/005-000, Wago

Male connector with straight solder pins 3 poles Spacing 3.5 mm / 0.138 in with mounting flange light grey

Technical specifications
Filter Property Value
Rated current 10 A
Type of locking Yes
Contact type pin
Colour light gray
Connection plating tin-plated
Number of rows 1
Additional parts equipped
Connection solder pin
Orientation straight
Grid 3.5 mm
Rated voltage 160 V
Pin number 3 pole
Version pin header
contact surface tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
