2091-1326/200-000 | WAGO

Socket header, 6 pole, pitch 3.5 mm, angled, light gray, 2091-1326/200-000

Order No.: 43P3783
EAN: 4050821395997
MPN:
2091-1326/200-000
Series: 2091

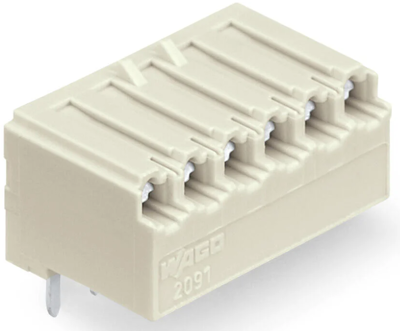

2091-1326/200-000 WAGO PCB Connection Systems Image 1

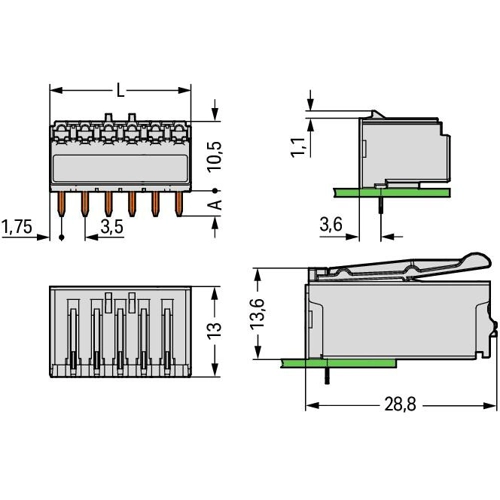

2091-1326/200-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.8913 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8913 €

Female header, 2091-1326/200-000, Wago

Female connector with angled solder pins 6-pin Spacing 3.5 mm / 0.138 in light grey

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.5 mm
Connection plating tin-plated
Pin number 6 pole
Version socket header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type socket
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
