2091-1308/200-000 | WAGO

Socket header, 8 pole, pitch 3.5 mm, straight, light gray, 2091-1308/200-000

Order No.: 44P7352
EAN: 4050821395966
MPN:
2091-1308/200-000
Series: 2091

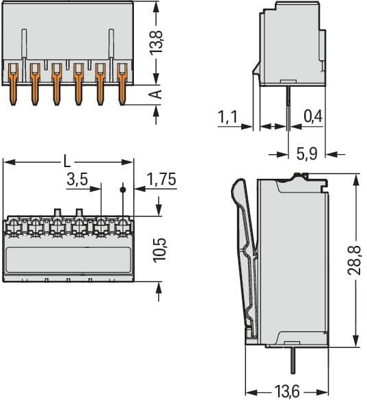

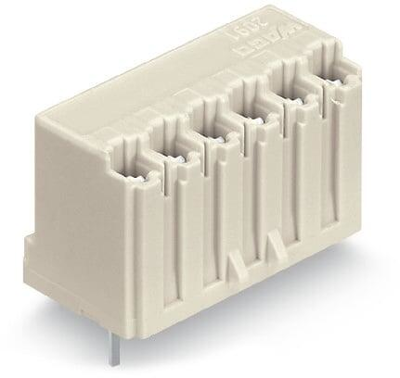

2091-1308/200-000 WAGO PCB Connection Systems Image 1

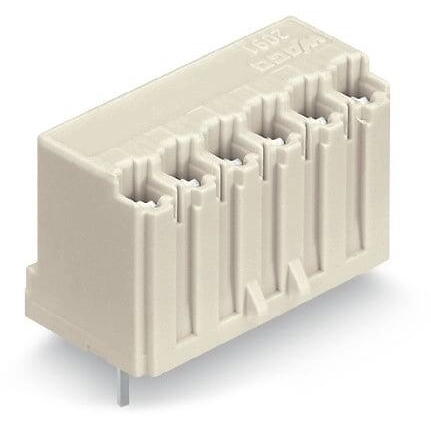

2091-1308/200-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
6.4855 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4855 €

THR female header, 2091-1308/200-000, WAGO

THR female header, straight, Pin spacing 3.5 mm, 8-pole, 0.4 x 0.9 mm solder pin, light gray.

Features

  • Coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
  • The female connector is fully shrouded by the male header's housing, providing vibration resistance up to 20 g
Technical specifications
Filter Property Value
Connection solder pin
Colour light gray
Pin number 8 pole
Contact type socket
Orientation straight
Type of locking No
Rated voltage 160 V
contact surface tin-plated
Version socket header
Rated current 10 A
Number of rows 1
Grid 3.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
