2022-187 | WAGO

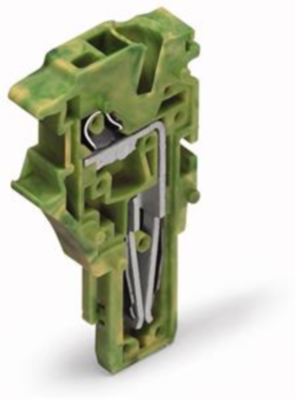

1-wire female connector end module, 1 pole, pitch 5.2 mm, straight, green-yellow, 2022-187
Unit Price (€ / pc.)
1.0591 € *
Available: 38 pcs.
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9758 €
50 pcs.
0.8925 €
100 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale
1-Conductor female connector end module, 2022-187, Wago
1-conductor end module 1-pole codable CAGE CLAMP connection green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.2 mm | |
| Breakable | No | |
| Contact type | socket | |
| Connection | push-in | |
| Rated voltage | 690 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 1 pole | |
| Additional parts | equipped | |
| Colour | green-yellow | |
| Version | socket header | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
