2022-108/145-000 | WAGO
1-wire female connector, 8 pole, pitch 5.2 mm, straight, gray, 2022-108/145-000
Unit Price (€ / pc.)
9.3653 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.37 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3653 €
10 pcs.
8.6156 €
50 pcs.
7.8421 €
100 pcs.
7.0567 €
*incl. VAT plus shipping costs
Subject to prior sale

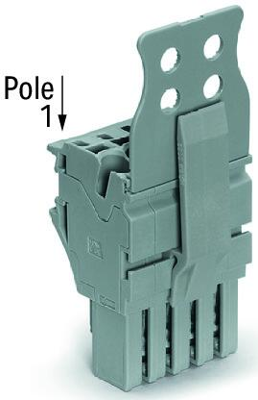

1-Conductor female connector, 2022-108/145-000, Wago
1-conductor female multipoint connector with strain relief plate and locking latch for insertion into base terminals, codable 8-pin gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | push-in | |
| Rated voltage | 690 V | |
| Orientation | straight | |
| Breakable | No | |
| Version | socket header | |
| Pin number | 8 pole | |
| Contact type | socket | |
| Grid | 5.2 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
