2020-206/000-037 | WAGO

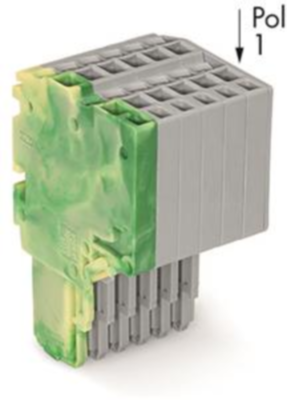

2-wire female connector, 6 pole, pitch 3.5 mm, straight, green-yellow/gray, 2020-206/000-037
Unit Price (€ / pc.)
8.1634 € *
Standard delivery time from the manufacturer is: 3 Weeks
2-Conductor female connector, 2020-206/000-037, Wago
2-conductor female multipoint connector with PE end module (green-yellow) for insertion into basic terminals, can be coded 6-pole green-yellow, gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in | |
| Colour | green-yellow/gray | |
| Additional parts | equipped | |
| Pin number | 6 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Breakable | No | |
| Rated voltage | 500 V | |
| Version | socket header | |
| Rated current | 13.5 A | |
| Number of rows | 1 | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
