2020-203/000-038 | WAGO

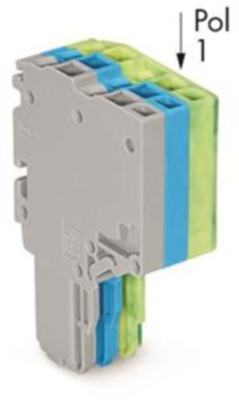

2-wire female connector, 3 pole, pitch 3.5 mm, straight, gray/blue/green-yellow, 2020-203/000-038
Unit Price (€ / pc.)
4.6529 € *
Standard delivery time from the manufacturer is: 3 Weeks
2-Conductor female connector, 2020-203/000-038, Wago
2-conductor female multipoint connector with PE start module (green-yellow) for insertion into basic terminals, can be coded 3-pole gray, blue, green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in | |
| Colour | gray/blue/green-yellow | |
| Additional parts | equipped | |
| Pin number | 3 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Breakable | No | |
| Rated voltage | 500 V | |
| Version | socket header | |
| Rated current | 13.5 A | |
| Number of rows | 1 | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
