2020-114/000-037 | WAGO

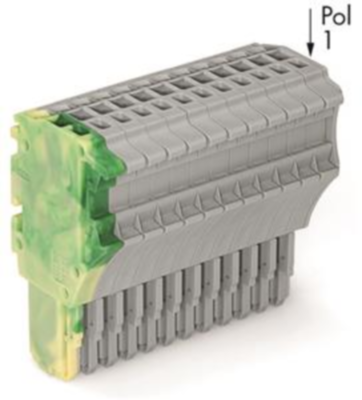

1-wire female connector, 14 pole, pitch 3.5 mm, straight, green-yellow/gray, 2020-114/000-037
Unit Price (€ / pc.)
13.2209 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
13.22 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2209 €
10 pcs.
12.1618 €
50 pcs.
11.0670 €
100 pcs.
9.9603 €
*incl. VAT plus shipping costs
Subject to prior sale
1-Conductor female connector, 2020-114/000-037, Wago
1-conductor female multipoint connector with PE end module (green/yellow) for insertion into basic terminals, can be coded 14-pin gray, green/yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green-yellow/gray | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | push-in | |
| Rated voltage | 500 V | |
| Orientation | straight | |
| Breakable | No | |
| Version | socket header | |
| Pin number | 14 pole | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Rated current | 13.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
