2020-112/000-037 | WAGO

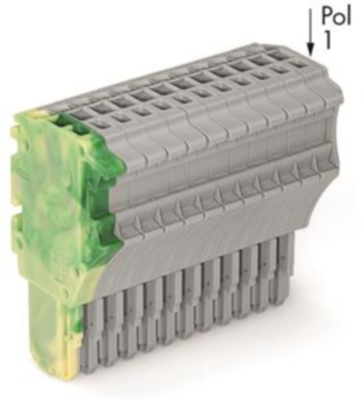

1-wire female connector, 12 pole, pitch 3.5 mm, straight, green-yellow/gray, 2020-112/000-037
Unit Price (€ / pc.)
11.4002 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
11.40 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4002 €
10 pcs.
10.4839 €
50 pcs.
9.5438 €
100 pcs.
8.5918 €
*incl. VAT plus shipping costs
Subject to prior sale
1-Conductor female connector, 2020-112/000-037, Wago
1-conductor female multipoint connector with PE end module (green/yellow) for insertion into base terminals, can be coded 12-pin gray, green/yellow
Technical specifications
| Colour | green-yellow/gray | |
| Breakable | No | |
| Rated current | 13.5 A | |
| Grid | 3.5 mm | |
| Pin number | 12 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | push-in | |
| Contact type | socket | |
| Rated voltage | 500 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
