2020-108/000-039 | WAGO
1-wire female connector, 8 pole, pitch 3.5 mm, straight, green-yellow/blue/gray, 2020-108/000-039
Unit Price (€ / pc.)
7.8897 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
7.89 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8897 €
10 pcs.
7.2590 €
50 pcs.
6.6045 €
100 pcs.
5.9500 €
*incl. VAT plus shipping costs
**Subject to prior sale

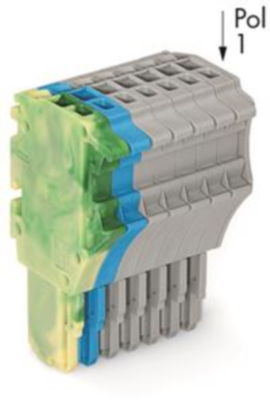

Female connector, 2020-108/000-039, WAGO
1-conductor female connector, Push-in CAGE CLAMP, 1.5 mm², pin spacing 3.5 mm, 8-pole, 1,50 mm², green-yellow/blue/gray.
Technical specifications
| Colour | green-yellow/blue/gray | |
| Breakable | No | |
| Rated current | 13.5 A | |
| Grid | 3.5 mm | |
| Pin number | 8 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | push-in | |
| Contact type | socket | |
| Rated voltage | 500 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
