1-wire female connector, 4 pole, pitch 3.5 mm, straight, gray/green-yellow, 2020-104/000-036
Unit Price (€ / pc.)
4.3792 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.38 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3792 €
10 pcs.
4.0222 €
50 pcs.
3.6652 €
100 pcs.
3.2963 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 2020-104/000-036, WAGO

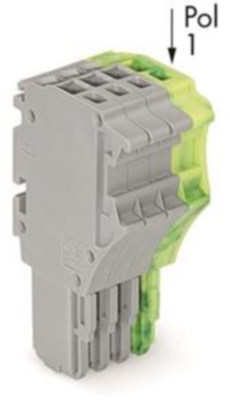

1-conductor female connector, Push-in CAGE CLAMP, 1.5 mm², pin spacing 3.5 mm, 4-pole, 1,50 mm², gray, green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray/green-yellow | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | push-in | |
| Rated voltage | 500 V | |
| Orientation | straight | |
| Breakable | No | |
| Version | socket header | |
| Pin number | 4 pole | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Rated current | 13.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
