756-1402/060-100 | WAGO

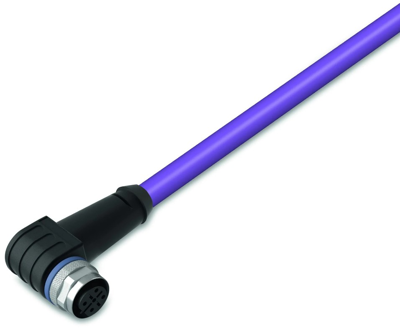

System cable, M12 socket, angled to open end, TPU, 10 m, purple, 756-1402/060-100
Unit Price (€ / pc.)
146.8698 € *
Standard delivery time from the manufacturer is: 3 Weeks
CANopen/DeviceNet cable, 756-1402/060-100, WAGO
CANopen/DeviceNet cable, M12A socket, Angled, 5-pole, Length: 10 m.
Features
- PUR VT, halogen-free
- Suitable for drag chains
- High resistance to microbes, hydrolysis, oil, chemical, ozone and UV resistance
- High chemical resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | TPU | |
| Detent lever protection available | No | |
| Version | system cable | |
| Degree of protection (IP) | IP67 | |
| Connection (2) | open end | |
| Cable length | 10 m | |
| Connection (1) | M12 socket, angled | |
| Colour | purple | |
| Halogen free | Yes | |
| AWG cross-section | AWG 24-22 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
