750-653/003-000 | WAGO
WAGO 750-653/003-000
Unit Price (€ / pc.)
394.9372 € *
Standard delivery time from the manufacturer is: 5 Weeks

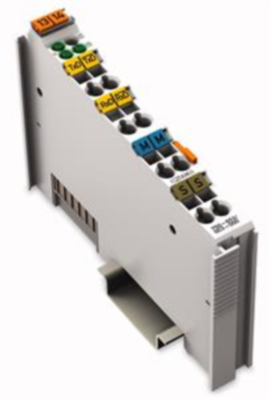

Serial Interface, 750-653/003-000, Wago

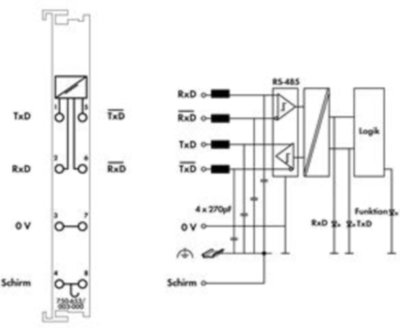

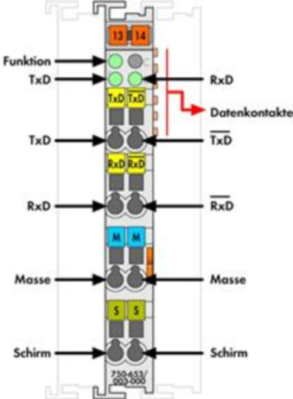

The interface integrated in the module enables connection of devices with RS-485 interface.
The interface operates in conformity with the standards TIA/EIA-485-A, DIN 66259. The connected device can communicate directly with the controller via the bus coupler used. The active communication channel operates independently of the superimposed bus system in full duplex mode with up to 19200 baud.
The RS-485 interface guarantees high noise immunity due to galvanically isolated signals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | interface | |
| Version | RS485 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
