753-648 | WAGO

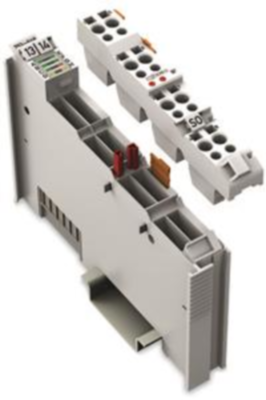

LON FTT interface, 753-648
LON FTT interface, 753-648, WAGO
It is a full-fledged and flexible LON device within LonWorks FT or LP networks. The module's network variable interface defines 249 network variables of any type and supports both LonMark objects and configuration properties. LON network interface is defined via LON configurator. Interface representations are programmed via IEC-61131-3 and can be easily used for further applications. A maximum of two modules may be connected to one controller. However, the number of modules depends on the memory required by the IEC application and the type of controller. The module is supplied via 24 V power jumper contacts.
Degree of protection (IP) | IP20 | |
Bussystem | LON FTT | |
Contact connection | clamp connection |
Country of origin | DE |
Customs tariff number | 85389099 |
Date of RoHS guidelines | 3/31/15 |
Substance description | boron trioxide, lead monoxide, lead |
SVHC free | No |
RoHS conform | Yes |
