753-620 | WAGO

DALI multi-master DC/DC converter, 753-620

Order No.: 44P5738
EAN: 4050821475729
MPN:
753-620
Series: 753

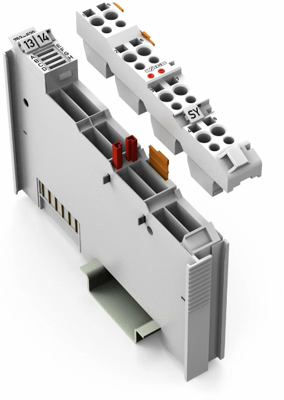

753-620 WAGO Interface Connectors, Bus Connectors Image 1
753-620 WAGO Interface Connectors, Bus Connectors Image 2
753-620 WAGO Interface Connectors, Bus Connectors Image 3
Image may differ
Unit Price (€ / pc.)
152.7008 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
152.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
152.7008 €

DC/DC converter, 753-620, WAGO

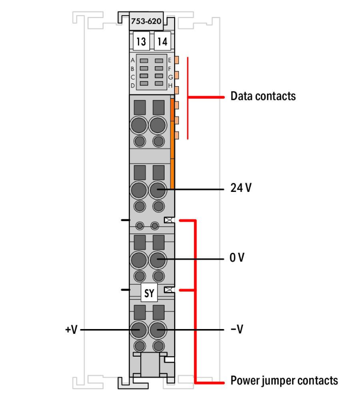

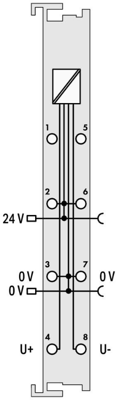

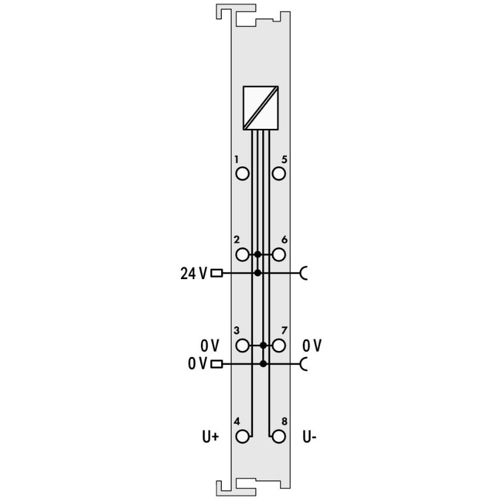

The 753-620 DALI Multi-Master DC/DC Converter is just 12 mm (½ inch) wide. It supplies power to the 753-647 DALI Multi-Master Module and delivers maximum 200 mA current to operate a single DALI line. The maximum number of slaves depends on the total power consumption of the single DALI devices. The 753-620 DC/DC Converter is supplied via 24 V power jumper contacts. Cable bridges connect the DC/DC Converter to the DALI Multi-Master Module.

Technical specifications
Filter Property Value
Degree of protection (IP) IP20
Bussystem DALI
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
