750-960 | WAGO

Profibus fieldbus plug, 9 pole, 12 Mbit/s, 750-960

Order No.: 44P5617
EAN: 4045454320157
MPN:
750-960
Series: 750
750-960 WAGO Interface Connectors, Bus Connectors Image 1
750-960 WAGO Interface Connectors, Bus Connectors Image 2
750-960 WAGO Interface Connectors, Bus Connectors Image 3
Image may differ
Unit Price (€ / pc.)
38.9011 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
38.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.9011 €

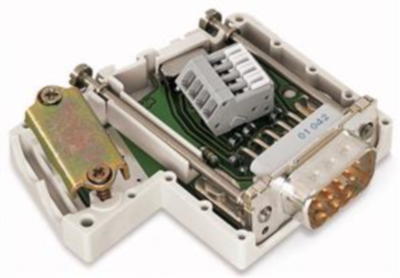

Fieldbus connector, 750-960, WAGO

This fieldbus connector links a PROFIBUS device to a PROFIBUS line. Has two horizontal cable entries for both input and output, fast and maintenance-free CAGE CLAMP connection that is a locking slide that keeps the clampling unit in its open position and externally operable switch to activate or deactivate the network terminating resistor.

Technical specifications
Filter Property Value
Degree of protection (IP) IP20
Bussystem profibus
Contact connection clamp connection
Pin number 9 pole
Data transmission rate 12000000 mb/s
Bus Connection D-Sub
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
