750-641 | WAGO
DALI DSI master terminal, 750-641
Unit Price (€ / pc.)
304.8066 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

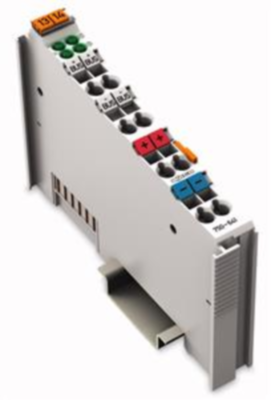

DALI/DSI master, 750-641, WAGO
A DALI Master can control up to 64 slaves. Each slave can be assigned to 16 individual groups and 16 individual settings. Several DALI Masters can be connected to a single fieldbus node. The maximum number of modules that can be connected to a controller depends on the memory required by the application. The 288-895 DC/DC Converter is required to supply the DALI Master. The DC/DC converter delivers up to 400 mA and can supply three DALI lines each with up to 130 mA.
Technical specifications
| Degree of protection (IP) | IP20 | |
| Bussystem | DALI | |
| Contact connection | clamp connection |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| RoHS conform | Yes |
