859-360 | WAGO

Relay, 1 Form C (NO/NC), 115 V (DC), 115 V (AC), 5 A, 250 V (AC), 859-360

Order No.: 45P2321
EAN: 4055143604604
MPN:
859-360
Series: 859

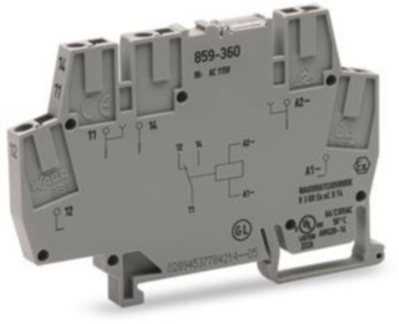

859-360 WAGO Industrial Relays Image 1

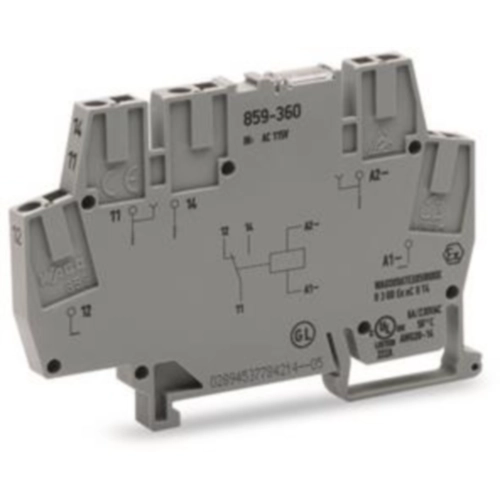

859-360 WAGO Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
36.9376 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
36.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.9376 €

Relay module, 859-360, WAGO

Relay module, Nominal input voltage: 115 VAC, 1 changeover contact, with gold contacts, Red status indicator, Module width: 6 mm, 2.50 mm², Gray.

Technical specifications
Switching Voltage (AC) 250 V
Coil voltage (AC) 115 V
switching current 5 A
Coil voltage (DC) 115 V
Connection spring-clamp connection
Contact type 1 Form C (NO/NC)
Contact material AgNi + Au
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
Substance description 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead
SVHC free No
RoHS conform Yes
