852-603 | WAGO
Ethernet switch, managed, 10 ports, 100 Mbit/s, 12-60 VDC, 852-603
Unit Price (€ / pc.)
1,228.08 € *
Standard delivery time from the manufacturer is: 7 Weeks

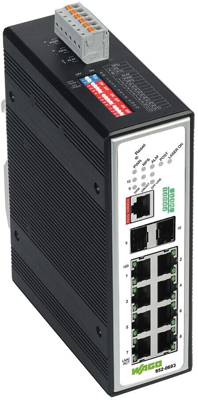

Ethernet switch, 852-603, WAGO
The configurable 852-603 Industrial Switch is a managed Ethernet switch equipped with eight 10/100Base-TX copper ports and two SFP slots. It can be configured as a 100Base-FX or 1000Base-SX/LX device. Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. The PROFINET certificate (conformity class B) guarantees easy integration into PROFINET automation systems using the device description file (GSD).
The device supports flexible multi-port mirroring configuration via device description file or Web-Based Management. Function blocks allow cyclic PROFINET switch diagnostics to be efficiently implemented within the TIA Portal.
Features
- Web-based/SNMP management
- Redundant DC power supply
- DIP switches to set alarm functions
- Full compliance with IEEE802.3, 802.3u, 802.3z, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p standards
- Non‐blocking, store‐and‐forward switching, rapid spanning tree protocol (RSTP)
- Port configuration, status, statistics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Data transmission rate | 100000000 mb/s | |
| Voltage | 12-60 VDC | |
| Version | ethernet switch, managed | |
| Ports | 10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
