852-1305 | WAGO
Ethernet switch, managed, 8 ports, 1 Gbit/s, 12-60 VDC, 852-1305
Unit Price (€ / pc.)
1,410.1262 € *
Standard delivery time from the manufacturer is: 7 Weeks

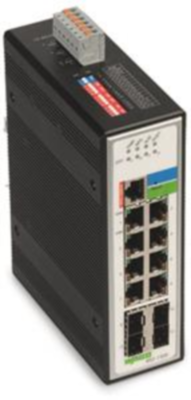

Industrial managed switch, 852-1305, WAGO

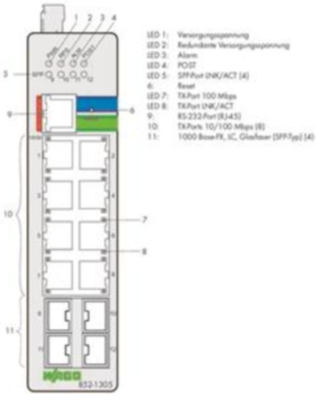

The configurable Industrial ETHERNET Switch is equipped with eight 10/100/1000BASE-T ports and four 1000BASE-SX/LX SFP slots (SFP modules are available as an option).
Features
- Web-based/SNMP Management
- Redundant DC power supply
- Wide supply voltage range: 12 to 60 VDC
- DIP switch to set alarm functions
- Xpress Ring (redundant ring, recovery < 50 ms)
- VLAN (802.1q) VID
- IGMP snooping for multicast filtering
- Port configuration, status, statistics
- Port trunking
- SNMP v1/v2 and RMON
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Data transmission rate | 1000000000 mb/s | |
| Voltage | 12-60 VDC | |
| Version | ethernet switch | |
| Ports | 8 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
