852-1305/000-001 | WAGO
Ethernet switch, managed, 12 ports, 1 Gbit/s, 12-48 VDC, 852-1305/000-001
Unit Price (€ / pc.)
1,552.95 € *
Standard delivery time from the manufacturer is: 7 Weeks

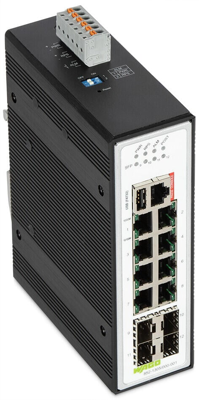

Ethernet switch, 852-1305/000-001, WAGO

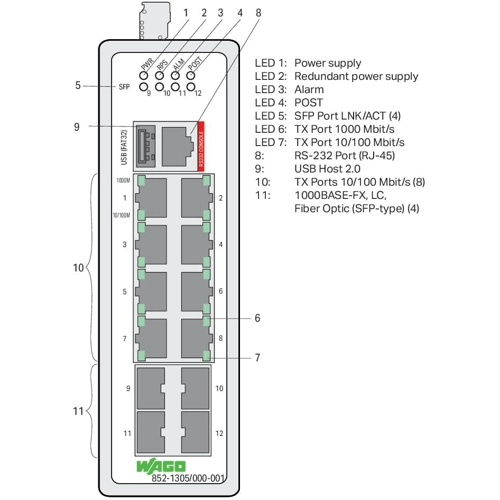

The configurable 852-1305/000-001 Industrial Ethernet switch is equipped with eight 10/100/1000BASE-T ports and four 1000BASE-SX/LX SFP ports. Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. These functions, along with extensive Ethernet switch options, make it ideal for a wide range of applications.
Features
- Web-based/SNMP management
- Redundant DC power supply
- Diagnostics via Modbus and SNMP
- DIP switches to set alarm functions
- Port configuration, status, statistics
- Approval (IEC 61850-3) for the energy market
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Data transmission rate | 1000000000 mb/s | |
| Voltage | 12-48 VDC | |
| Version | ethernet switch, managed | |
| Ports | 12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
