711-193 | WAGO
Transformer fuse terminal, 1 pole, 250 V, 10 A, 711-193
Unit Price (€ / pc.)
5.9738 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.97 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9738 €
10 pcs.
5.5454 €
50 pcs.
5.0456 €
100 pcs.
4.4506 €
500 pcs.
3.9151 €
*incl. VAT plus shipping costs
Subject to prior sale

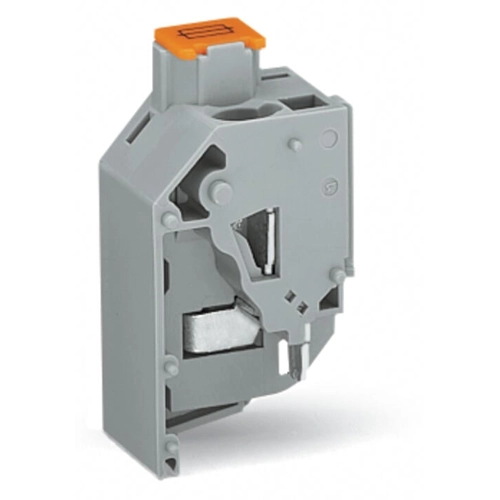

Transformer fuse terminal block, 711-193, WAGO
The transformer clamp with article number 711-193 enables quick and safe wiring. This product is based on CAGE CLAMP technology. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect a conductor with a cage clamp without the need to pre-treat the conductor. There is therefore no need to crimp on a wire end ferrule. The dimensions are 15 x 35 x 23.5 mm in width x height x depth. 1 potential can be connected to the 1 terminal point.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 250 V | |
| Pin number | 1 pole | |
| Number of terminals | 1 | |
| Height | 35 mm | |
| Colour | orange | |
| Degree of soiling | 2 | |
| Rated current | 10 A | |
| Version | transformer fuse terminal | |
| Connection | tension clamp connection | |
| Width | 15 mm | |
| Rated surge voltage | 4000 V | |
| Length | 23.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
