282-698/281-413 | WAGO

2-wire fuse terminal, 2 pole, 0.2-6.0 mm², 400 V, 25 A, 282-698/281-413

Order No.: 43P1706
EAN: 4050821234555
MPN:
282-698/281-413
Series: 282

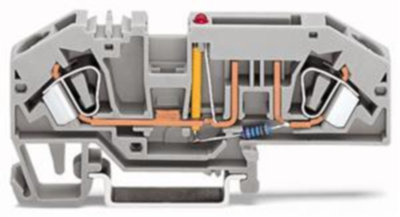

282-698/281-413 WAGO Fuse Terminals Image 1
282-698/281-413 WAGO Fuse Terminals Image 2
Image may differ
Unit Price (€ / pc.)
8.211 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.211 €

2-conductor fuse terminal block, 282-698/281-413, WAGO

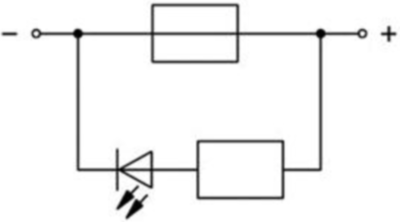

2-conductor fuse terminal block for automotive blade-style fuses, with test option, with blown fuse indication by LED, 24 V, for DIN-rail 35x15 and 35x7.5, 6 mm², CAGE CLAMP, 6.00 mm², Gray.

Technical specifications
Filter Property Value
Version 2-wire fuse terminal
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.2-6.0 mm²
AWG cross-section AWG 24 to 10
Rated Voltage 400 V
Rated surge voltage 6000 V
Rated current 25 A
Degree of soiling 3
Length 33.5 mm
Width 8 mm
Height 85 mm
Connection tension clamp connection
Colour gray
Logistics
Property Value
Customs tariff number 85369095
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
