282-696 | WAGO

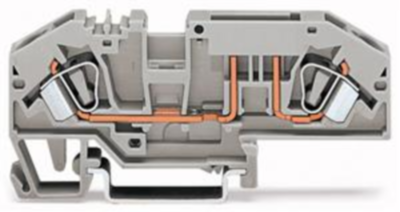

2-wire fuse terminal, 2 pole, 0.2-6.0 mm², 400 V, 25 A, 282-696
Unit Price (€ / pc.)
5.2479 € *
Available: 5 pcs.
Total Price:
5.25 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2479 €
10 pcs.
4.8314 €
50 pcs.
4.3911 €
100 pcs.
3.9508 €
*incl. VAT plus shipping costs
Subject to prior sale
2-Conductor fuse terminal block, 282-696, Wago
2-conductor fuse terminal block for automotive fuses center marking with test possibility for TS 35 front wiring CAGE CLAMP connection horizontal design without defect indication gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2-wire fuse terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-6.0 mm² | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6000 V | |
| Rated current | 25 A | |
| Degree of soiling | 3 | |
| Length | 33.5 mm | |
| Width | 8 mm | |
| Height | 85 mm | |
| Connection | tension clamp connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
