282-122 | WAGO

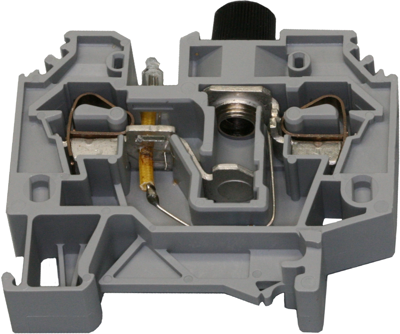

Fuse terminal block, 2 pole, 0.2-6.0 mm², 500 V, 10 A, 282-122
Unit Price (€ / pc.)
6.8187 € *
Available: 39 pcs.
Next delivery: 40 pcs. on 2025-07-14
Total Price:
6.82 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8187 €
10 pcs.
6.1285 €
50 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse terminal blocks, type 282-.
conductor entrance on the side, with integrated G fuse element 5.0x20 mm, Cross-sectional range: 0.2 to 6.0 mm². Rated voltage: version without glow lamp: 500 V (rated surge voltage 6.0 kV), version with glow lamp: 250 VAC/220 VDC. Rated current: 10 A. Dimensions WxH: 13x54.5 (H measured from top edge of the mounting rail: 62 mm). Color: gray. Certifications: UL, CSA, KEMA etc.
Technical attributes (type, rated cross-section, rated current, terminal width (B), color): 282-122, fuse terminal block without glow lamp
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2-wire fuse terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-6.0 mm² | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6000 V | |
| Rated current | 10 A | |
| Degree of soiling | 3 | |
| Length | 54.5 mm | |
| Width | 13 mm | |
| Height | 62 mm | |
| Connection | tension clamp connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
