281-611/281-542 | WAGO

Fuse terminal block, 2 pole, 0.08-4.0 mm², 800 V, 10 A, 281-611/281-542

Order No.: 44P0901
EAN: 4045454871468
MPN:
281-611/281-542
Series: 281
281-611/281-542 WAGO Fuse Terminals Image 1
281-611/281-542 WAGO Fuse Terminals Image 2
Image may differ
Unit Price (€ / pc.)
10.1626 € *
Available: 48 pcs.
Leadtime: 10 Weeks **
Total Price:
10.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.1626 €

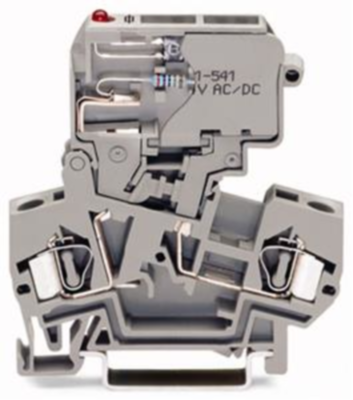

2-conductor fuse terminal block, 281-611/281-542, WAGO

2-conductor fuse terminal block with pivoting fuse holder, for 5x20 mm miniature metric fuse, with blown fuse indication by LED, 30 - 65 V, for DIN-rail 35x15 and 35x7.5, 4 mm², CAGE CLAMP, 4 mm², Gray.

Technical specifications
Version 2-Leiter-Sicherungsklemme
Number of terminals 2
Pin number 2-polig
Cable cross-section 0,08-4,0 mm²
AWG cross-section AWG 28 bis 12
Rated Voltage 800 V
Rated surge voltage 8000 V
Rated current 10 A
Degree of soiling 3
Length 60 mm
Width 8 mm
Height 60 mm
Connection Zugfederanschluss
Colour grau
Logistics
Country of origin CN
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
