2006-1681/1000-435 | WAGO

2-wire fuse terminal, 1 pole, 0.5-10 mm², 500 V, 25 A, 2006-1681/1000-435

Order No.: 09H4751
EAN: 4045454972189
MPN:
2006-1681/1000-435
Series: TOPJOB S

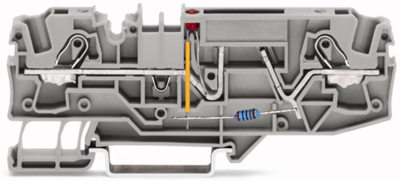

2006-1681/1000-435 WAGO Fuse Terminals
Image may differ
Unit Price (€ / pc.)
9.7818 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.7818 €

2-Conductor fuse terminal block, 2006-1681/1000-435, Wago

2-conductor fuse terminal block for automotive fuses with test option 48 V with defect indication by LED Current consumption LED: 4.8 mA gray

Technical specifications
Filter Property Value
Version 2-wire fuse terminal
Number of terminals 2
Pin number 1 pole
Cable cross-section 0.5-10 mm²
AWG cross-section AWG 20 to 8
Rated Voltage 500 V
Rated surge voltage 8000 V
Rated current 25 A
Degree of soiling 3
Length 32.9 mm
Width 7.5 mm
Height 96.3 mm
Connection tension clamp connection
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
