2002-1981/1000-449 | WAGO

2-wire fuse terminal, 2 pole, 0.25-4.0 mm², 400 V, 10 A, 2002-1981/1000-449

Order No.: 09H4319
EAN: 4050821089360
MPN:
2002-1981/1000-449
Series: TOPJOB S
2002-1981/1000-449 WAGO Fuse Terminals
Image may differ
Unit Price (€ / pc.)
7.378 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
7.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.378 €

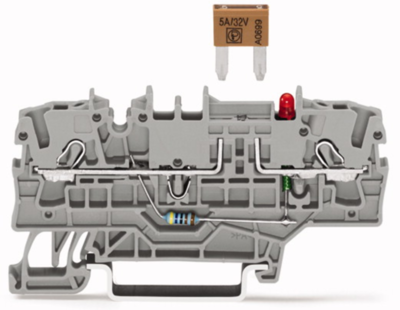

2-Conductor fuse terminal block, 2002-1981/1000-449, Wago

2-conductor fuse terminal block for automotive fuses with test facility 12 V with defect indication by LED Current consumption LED: 4.8 mA gray

Technical specifications
Filter Property Value
Version 2-wire fuse terminal
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.25-4.0 mm²
AWG cross-section AWG 22 to 12
Rated Voltage 400 V
Rated surge voltage 6000 V
Rated current 10 A
Degree of soiling 3
Length 32.9 mm
Width 5.2 mm
Height 72.9 mm
Connection tension clamp connection
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
