2002-1911/1000-867 | WAGO

2-wire fuse terminal, 2 pole, 0.25-4.0 mm², 250 V, 6.3 A, 2002-1911/1000-867

Order No.: 09H4303
EAN: 4050821321798
MPN:
2002-1911/1000-867
Series: TOPJOB S
2002-1911/1000-867 WAGO Fuse Terminals
Image may differ
Unit Price (€ / pc.)
10.6267 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
10.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.6267 €

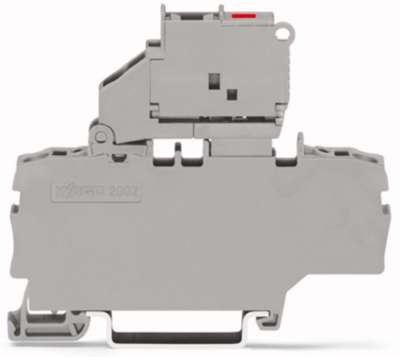

2-Conductor fuse terminal block, 2002-1911/1000-867, Wago

2-conductor fuse terminal block with pivoting fuse holder for G-fuse link 5x20 mm 120 V with defect indication by LED with additional jumper gray

Technical specifications
Filter Property Value
Version 2-wire fuse terminal
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.25-4.0 mm²
AWG cross-section AWG 22 to 12
Rated Voltage 250 V
Rated surge voltage 6000 V
Rated current 6.3 A
Degree of soiling 3
Length 57.6 mm
Width 6.2 mm
Height 72.9 mm
Connection tension clamp connection
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
