Unit Price (€ / pc.)
39.4842 € *
Standard delivery time from the manufacturer is: 5 Weeks

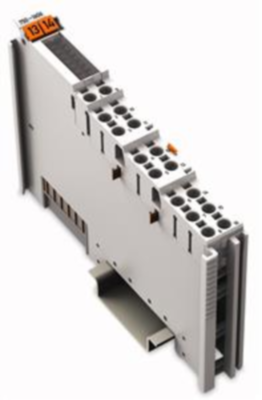

Potential distribution, 750-1606, WAGO

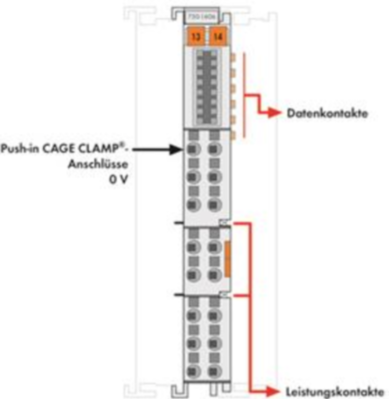

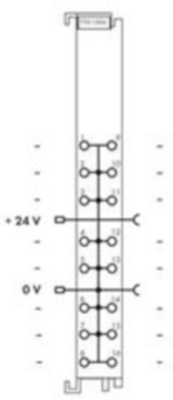

This potential multiplication module provides 24 V to the inputs in combination with the 750-1405 and 750-1406 16-Channel Input Module (also suitable for 8-channel input modules with with a single wire connection). This eliminates the need for additional DIN-rail-mount terminal blocks. The 0 V power is provided to all sixteen field-side Push-in CAGE CLAMP connections and the 24 V potential passed through without being used by the module.
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
