750-495 | WAGO

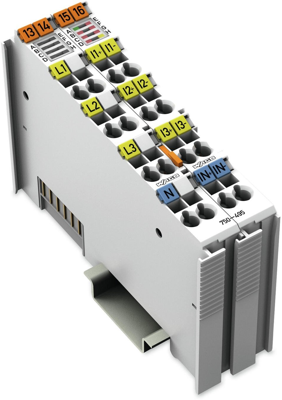

Active energy meter, 3 phase, 690 VAC, 1 A, (L x W x H) 67.8 x 24 x 100 mm, 750-495
Unit Price (€ / pc.)
389.5822 € *
Standard delivery time from the manufacturer is: 5 Weeks
3-phase power measurement, 750-495, Wago
The 750-495 3-phase power measurement module enables measurement of the electrical data of a three-phase supply network
The voltage is measured via the connection of the mains at the terminal points L1, L2, L3 and N.
The current of the three phases is fed in via current transformers, or in the case of the 750-495/000-002 via Rogowski coils, at the terminal points IL1, IL2, IL3 and IN (two terminal points +,- each).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 24 mm | |
| Height | 100 mm | |
| Weight | 90.7 g | |
| Version | 3 phase, 690 VAC, 1 A | |
| Product type | active energy meter | |
| Length | 67.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | boron trioxide, lead monoxide, lead |
| Date of RoHS guidelines | 3/31/15 |
