787-842 | WAGO

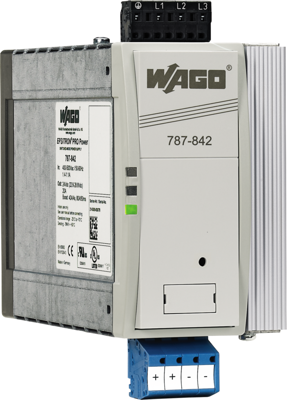

Power supply, 22.8 to 28.8 VDC, 20 A, 480 W, 787-842
Unit Price (€ / pc.)
484.7227 € *
Standard delivery time from the manufacturer is: 6 Weeks
Primary switch mode power supply, 787-842, WAGO
Features
- Primary switched mode power supply with PowerBoost and TopBoost
- Stand-by input to switch off the output and reduce energy consumption to a minimum
- Parallel connection, series connection
- Self-cooling by natural convection with horizontal installation position
- Encapsulated for control cabinet installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 77 mm | |
| Degree of protection (IP) | IP20 | |
| Power | 480 W | |
| Input voltage AC | 340-550 VAC, 480-780 VDC | |
| Output current | 20 A | |
| efficiency | 92.9 % | |
| Number of outputs | 1 | |
| Height | 171 mm | |
| Output voltage DC | 22.8 to 28.8 VDC | |
| Depth | 179 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
