787-832 | WAGO
Power supply, 22 to 29.5 VDC, 10 A, 240 W, 787-832
Unit Price (€ / pc.)
457.0195 € *
Standard delivery time from the manufacturer is: 6 Weeks

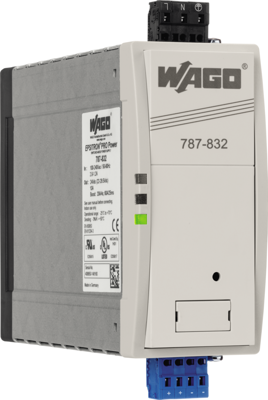

Primary switch mode power supply, 787-832, WAGO
Features
- Primary switched mode power supply with PowerBoost and TopBoost
- Parallel connection, series connection
- Self-cooling by natural convection with horizontal installation position
- Encapsulated for control cabinet installation
- Electrically isolated output voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 57 mm | |
| Degree of protection (IP) | IP20 | |
| Power | 240 W | |
| Input voltage AC | 85-264 VAC, 120-300 VDC | |
| Output current | 10 A | |
| efficiency | 90 % | |
| Number of outputs | 1 | |
| Height | 163 mm | |
| Output voltage DC | 22 to 29.5 VDC | |
| Depth | 179 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
