787-602 | WAGO
Power supply, 22 to 28.8 VDC, 1.3 A, 31.2 W, 787-602
Order No.: 43P2214
EAN: 4045454435134
MPN:
787-602
This item is no longer available.
As an alternative, we recommend the following item:
Power supply, 24 VDC, 1.25 A, 30 W, 2687-2142
Order No.: 43P2215
Manufacturer: WAGO
per pc. 149.7734 € *

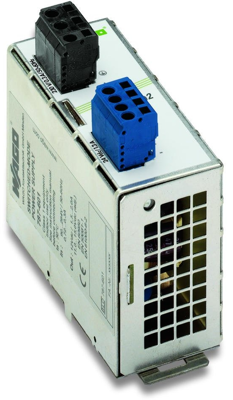

Primary switch mode power supply, 787-602, WAGO
Features
- Primary switch mode power supply
- Protection class I
- Self-cooling by natural convection with horizontal installation position
- Encapsulated, for control cabinet installation
- Electrically isolated output voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.3 A | |
| Output voltage DC | 22 to 28.8 VDC | |
| Input voltage AC | 90-264 VAC, 130-300 VDC | |
| Power | 31.2 W | |
| efficiency | 83 % | |
| Degree of protection (IP) | IP20 | |

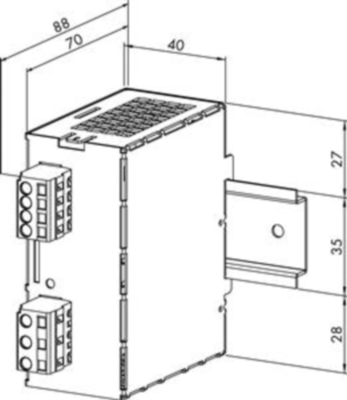

| Width | 40 mm | |
| Height | 95 mm | |
| Depth | 90 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
