787-1611 | WAGO
Power supply, 11.5 to 14.5 VDC, 4 A, 48 W, 787-1611
Unit Price (€ / pc.)
179.1188 € *
Standard delivery time from the manufacturer is: 6 Weeks

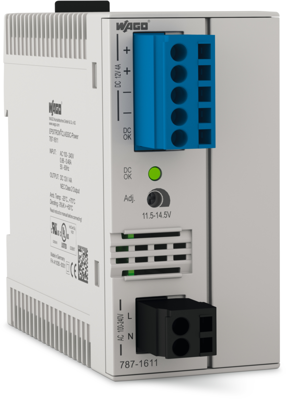

Primary switch mode power supply, 787-1611, WAGO
Features
- Primary switch mode power supply
- Self-cooling by natural convection with horizontal installation position
- Encapsulated, for control cabinet installation
- Limited Power Source (LPS) according to NEC Class 2
- Parallel connection, series connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 45 mm | |
| Degree of protection (IP) | IP20 | |
| Power | 48 W | |
| Input voltage AC | 85-264 VAC, 120-300 VDC | |
| Output current | 4 A | |
| efficiency | 86 % | |
| Number of outputs | 1 | |
| Height | 90 mm | |
| Output voltage DC | 11.5 to 14.5 VDC | |
| Depth | 107.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
