787-1012 | WAGO
Power supply, 22.8 to 26.4 VDC, 2.5 A, 60 W, 787-1012
Unit Price (€ / pc.)
120.9397 € *
Standard delivery time from the manufacturer is: 6 Weeks

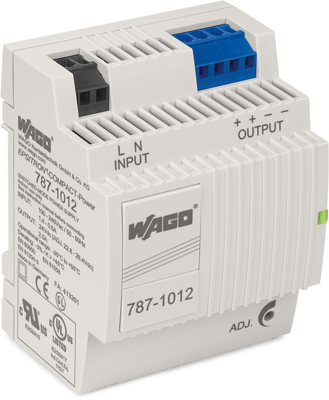

Primary switch mode power supply, 787-1012, WAGO
Features
- Primary switch mode power supply
- Self-cooling by natural convection with horizontal installation position
- Step profile, optimal for installation distributors or system distributors
- Overhead installation with derating permitted
- Parallel connection, series connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 72 mm | |
| Degree of protection (IP) | IP20 | |
| Power | 60 W | |
| Input voltage AC | 85-264 VAC, 120-300 VDC | |
| Output current | 2.5 A | |
| efficiency | 88 % | |
| Number of outputs | 1 | |
| Height | 89 mm | |
| Output voltage DC | 22.8 to 26.4 VDC | |
| Depth | 59 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
