753-540 | WAGO

Output module, Outputs: 4, (W x H x D) 12 x 100 x 698 mm, 753-540

Order No.: 44P5724
EAN: 4045454670153
MPN:
753-540
Series: 753

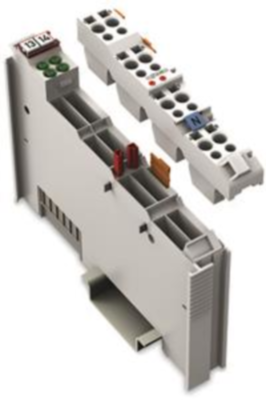

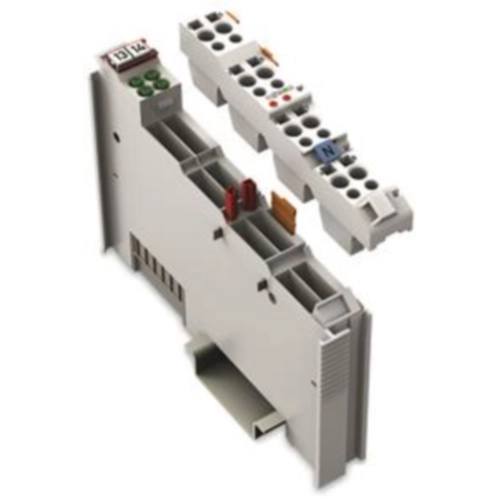

753-540 WAGO Digital modules Image 1
753-540 WAGO Digital modules Image 2
753-540 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
151.249 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
151.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
151.249 €

Digital output, 753-540, WAGO

4-channel digital output, 230 VAC, 0.25 A, Solid-state.

Features

  • This digital output module transmits control signals from the automation device to the connected actuators
  • The module has four output channels and eight actuators may be connected to it

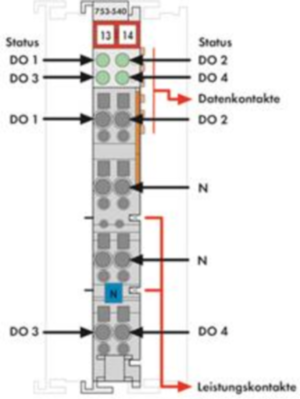

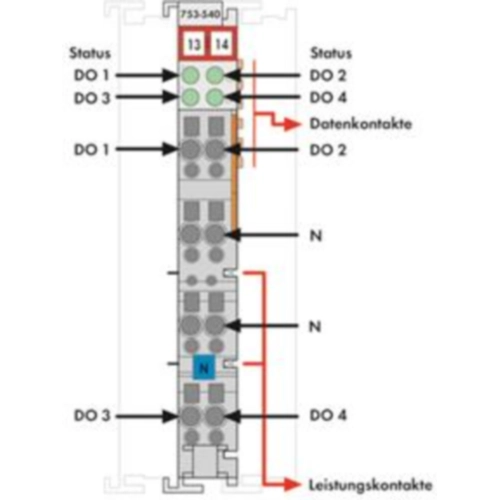

  • The signal state of the outputs is shown by an LED
  • Field and system levels are electrically isolated
Technical specifications
Filter Property Value
Depth 698 mm
Assembly DIN rail
Version output module
Width 12 mm
Height 100 mm
Number of digital outputs 4
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
