753-422 | WAGO

Input module, Inputs: 4, (W x H x D) 12 x 100 x 698 mm, 753-422

Order No.: 44P5664
EAN: 4045454805302
MPN:
753-422
Series: 753

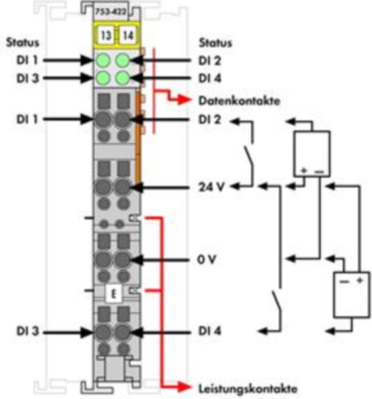

753-422 WAGO Digital modules Image 1

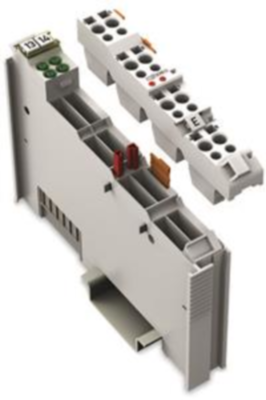

753-422 WAGO Digital modules Image 2

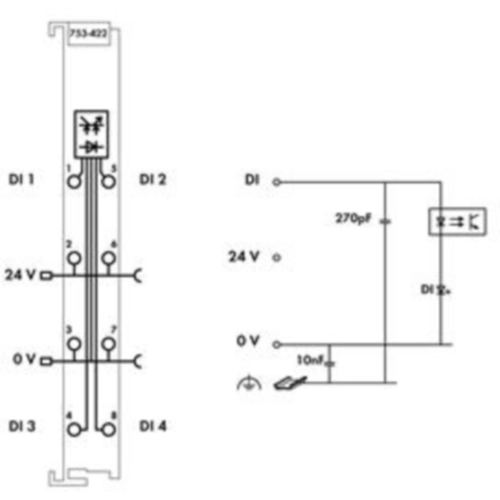

753-422 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
70.5908 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
70.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
70.5908 €

Digital input, 753-422, WAGO

4-channel digital input, 24 VDC, Pulse extension.

Features

  • This digital input module receives control signals from field devices (e.g., sensors)
  • The module extends input signals to at least 10 ms. Only signals ≥ 1 ms will be acquired. Input signals > 10 ms will not be extended (without fall delay)
  • Field and system levels are electrically isolated
Technical specifications
Filter Property Value
Depth 698 mm
Number of digital inputs 4
Assembly DIN rail
Version input module
Width 12 mm
Height 100 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Substance description boron trioxide, lead monoxide, lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
