753-410 | WAGO
Input module, Inputs: 2, (W x H x D) 12 x 100 x 698 mm, 753-410
Unit Price (€ / pc.)
39.3295 € *
Standard delivery time from the manufacturer is: 5 Weeks

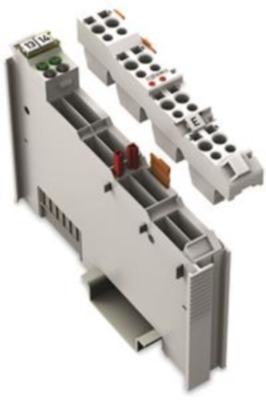

Digital input, 753-410, WAGO
2-channel digital input, 24 VDC, 3 ms, Proximity switch.
Features
- This digital input module receives control signals from field devices (e.g., sensors)
- Each input module has a noise-rejection filter
- Field and system levels are electrically isolated

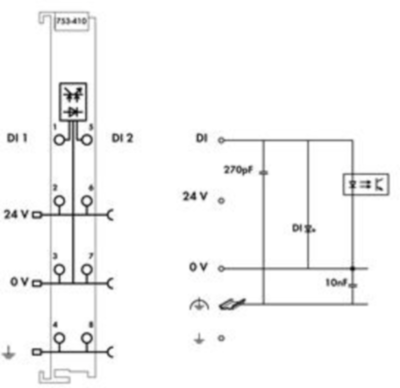

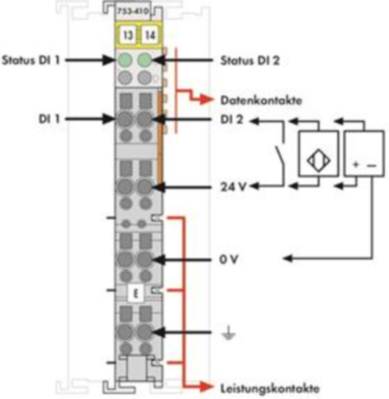

- A 2-wire proximity sensor can be connected to this module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 698 mm | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Width | 12 mm | |
| Number of digital inputs | 2 | |
| Version | input module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | boron trioxide, lead monoxide, lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
