750-539 | WAGO

Output module for 750 series, Outputs: 4, (W x H x D) 24 x 100 x 678 mm, 750-539

Order No.: 44P5412
EAN: 4055143514149
MPN:
750-539
Series: 750

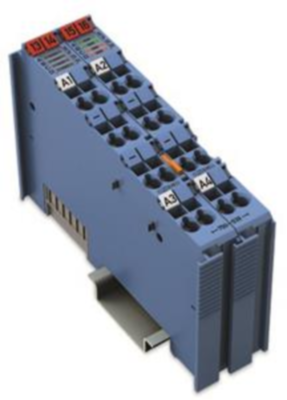

750-539 WAGO Digital modules Image 1

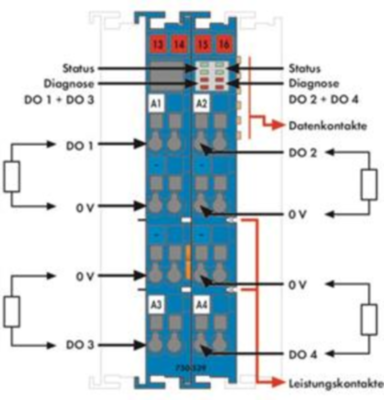

750-539 WAGO Digital modules Image 2

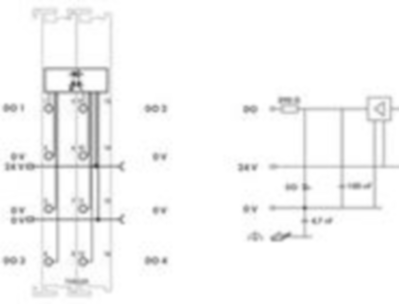

750-539 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
351.7045 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
351.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
351.7045 €

Digital output, 750-539, WAGO

4-channel digital output, 24 VDC, Valve, Intrinsically safe.

Features

  • This digital output module controls actuators operating in Zone 0+1 hazardous areas
  • Intrinsically safe valves can be directly controlled
  • The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area
  • All outputs are electronically short-circuit-protected
  • Field and system levels are electrically isolated
Technical specifications
Filter Property Value
Depth 678 mm
Assembly DIN rail
Suitable for 750 series
Version output module
Width 24 mm
Height 100 mm
Number of digital outputs 4
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Substance description boron trioxide, lead monoxide, lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
