750-536 | WAGO

Output module for 750 series, Outputs: 8, (W x H x D) 12 x 100 x 678 mm, 750-536

Order No.: 44P5408
EAN: 4045454826406
MPN:
750-536
Series: 750

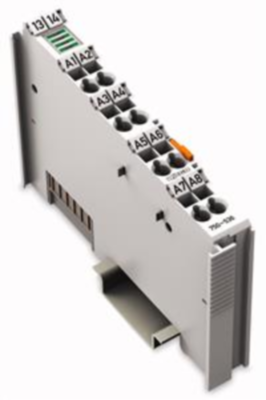

750-536 WAGO Digital modules Image 1
750-536 WAGO Digital modules Image 2
750-536 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
95.0334 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
95.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
95.0334 €

Digital output, 750-536, WAGO

8-channel digital output, 24 VDC, 0.5 A, Low-side switching.

Features

  • This digital output module features eight channels in a width of just 12 mm
  • The module transmits control signals from an automation device to connected actuators
  • All outputs are short-circuit-protected
  • Field and system levels are electrically isolated
Technical specifications
Filter Property Value
Depth 678 mm
Assembly DIN rail
Suitable for 750 series
Version output module
Width 12 mm
Height 100 mm
Number of digital outputs 8
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Substance description Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
