750-535/040-000 | WAGO

Output module for 750 series, Outputs: 2, (W x H x D) 12 x 100 x 678 mm, 750-535/040-000

Order No.: 44P5407
EAN: 4055143649537
MPN:
750-535/040-000
Series: 750

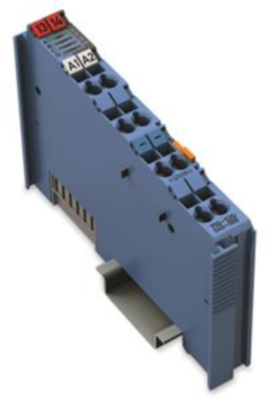

750-535/040-000 WAGO Digital modules Image 1
750-535/040-000 WAGO Digital modules Image 2
750-535/040-000 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
263.4303 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
263.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
263.4303 €

Digital output, 750-535/040-000, WAGO

2-channel digital output, 24 VDC, Intrinsically safe, Extreme.

Features

  • This digital output module controls actuators operating in Zone 0+1 hazardous areas
  • Intrinsically safe magnetic valves can be directly controlled
  • The WAGO I/O System 750 XTR must be installed either in Zone 2 or in a non-hazardous area
  • All outputs are electronically short-circuit-protected
  • Field and system levels are electrically isolated
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance
Technical specifications
Filter Property Value
Depth 678 mm
Assembly DIN rail
Suitable for 750 series
Version output module
Width 12 mm
Height 100 mm
Number of digital outputs 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
