750-509 | WAGO
Output module for 750 series, Outputs: 2, (W x H x D) 12 x 100 x 698 mm, 750-509
Unit Price (€ / pc.)
97.0921 € *
Standard delivery time from the manufacturer is: 5 Weeks

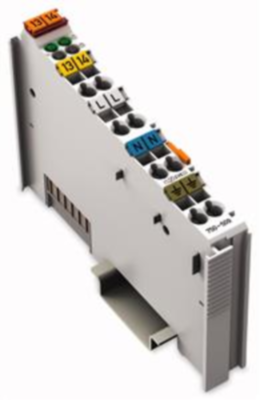

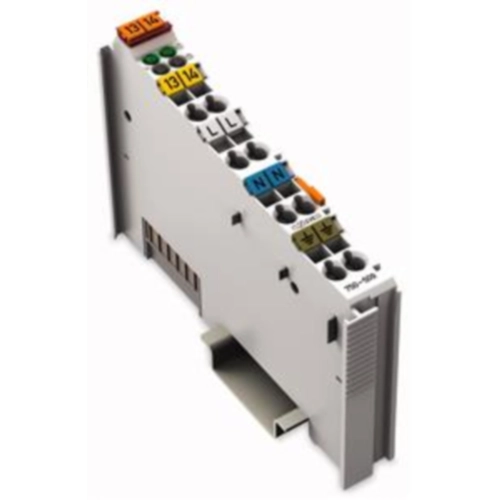

Digital output, 750-509, WAGO
2-channel digital output, 230 VAC, 0.3 A, Solid-state.
Features
- This digital output module transmits control signals from the automation device to the connected actuators
- The semiconductor output is electrically isolated from the control side
- Power supply for the outputs is provided via the power jumper contacts
- The signal state of the outputs is shown by an LED
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 698 mm | |
| Number of digital outputs | 2 | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Width | 12 mm | |
| Suitable for | 750 series | |
| Version | output module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, lead monoxide (lead oxide) |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
