750-435 | WAGO

Input module, Inputs: 1, (W x H x D) 12 x 100 x 678 mm, 750-435

Order No.: 45P7719
EAN: 4045454725532
MPN:
750-435
Series: 750

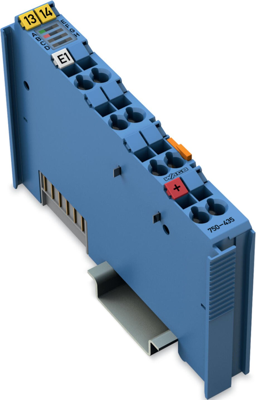

750-435 WAGO Digital modules Image 1

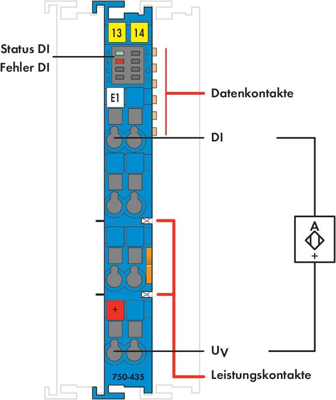

750-435 WAGO Digital modules Image 2
Image may differ
Unit Price (€ / pc.)
91.63 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
91.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
91.63 €

Digital input module, 750-435, WAGO

This digital input module records binary signals from sensors operating in Zone 0+1 hazardous areas. NAMUR sensors, optocouplers, mechanical contacts (in conjunction with resistance coupling module, available as an accessory) or other actuating elements can be connected via intrinsically safe devices. The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area. Each sensor is supplied with a short-circuit-protected voltage of 8.2 V.

Technical specifications
Filter Property Value
Depth 678 mm
Number of digital inputs 1
Assembly DIN rail
Version input module
Width 12 mm
Height 100 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
