750-424 | WAGO
Input module for 750 series, Inputs: 2, (W x H x D) 12 x 100 x 698 mm, 750-424
Unit Price (€ / pc.)
70.3409 € *
Standard delivery time from the manufacturer is: 5 Weeks

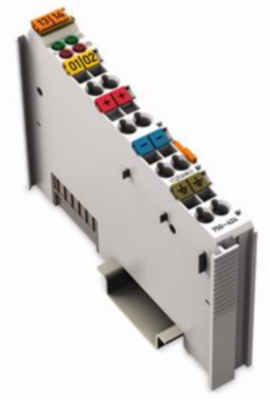

Digital input, 750-424, WAGO
2-channel digital input, Intruder detection.
Features

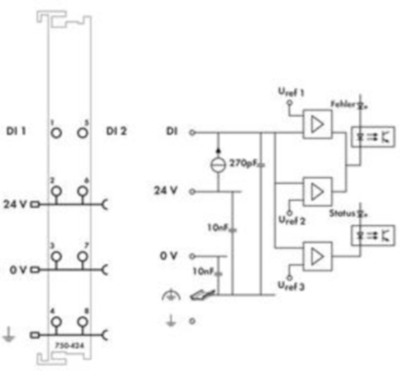

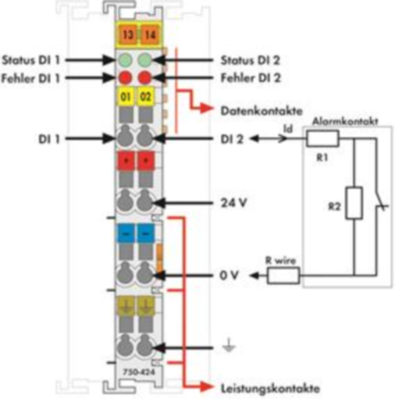

- This module incorporates a current loop, which makes it possible to monitor alarm contacts (window contacts) with a fixed resistance ratio (R1, R2), for intruder detection
- The module indicates the status of the connected contact via LEDs and status bits in the process image
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 698 mm | |
| Assembly | DIN rail | |
| Number of digital inputs | 2 | |
| Width | 12 mm | |
| Height | 100 mm | |
| Version | input module | |
| Suitable for | 750 series |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| RoHS conform | Yes |
