750-1516 | WAGO

Output module for 750 series, Outputs: 8, (W x H x D) 12 x 100 x 69 mm, 750-1516

Order No.: 44P5194
EAN: 4050821085652
MPN:
750-1516
Series: 750

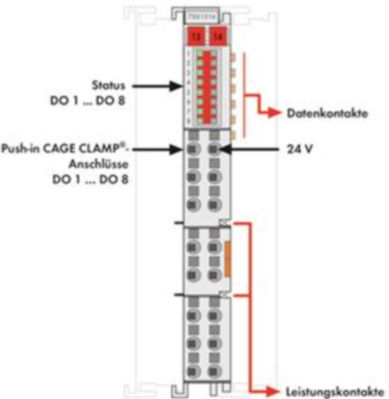

750-1516 WAGO Digital modules Image 1

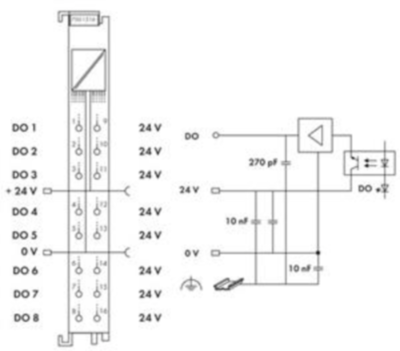

750-1516 WAGO Digital modules Image 2

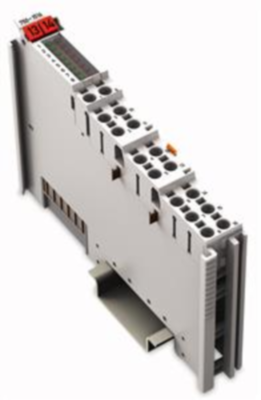

750-1516 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
92.82 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
92.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
92.82 €

Digital output, 750-1516, WAGO

8-channel digital output, 24 VDC, 0.5 A, Low-side switching, 2-conductor connection.

Features

  • This digital output module is a 2-wire device featuring eight channels in a width of just 12 mm
  • It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads)
  • The module features Push-in CAGE CLAMP connections enabling solid conductors to be connected by simply pushing them in
  • A green LED indicates the signal state of each channel
  • Field and system levels are electrically isolated
Technical specifications
Filter Property Value
Depth 69 mm
Number of digital outputs 8
Height 100 mm
Assembly DIN rail
Width 12 mm
Suitable for 750 series
Version output module
Logistics
Property Value
Customs tariff number 85371098
Country of origin DE
Compliance
Property Value
Substance description Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
