750-1515 | WAGO
Output module for 750 series, Inputs: 8, (W x H x D) 12 x 100 x 69 mm, 750-1515
Order No.: 73F2011
EAN: 4050821085584
MPN:
750-1515
Unit Price (€ / pc.)
110.8842 € *
Standard delivery time from the manufacturer is: 5 Weeks

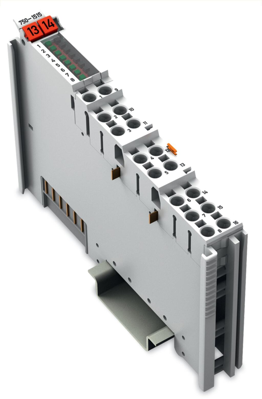

Digital output module, 750-1515, WAGO

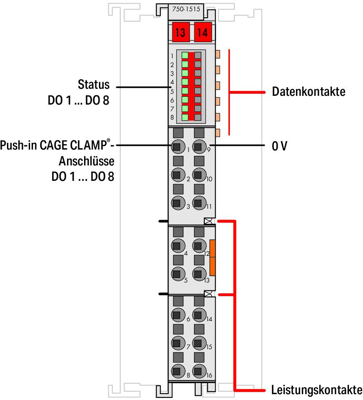

This digital output module is a 2-wire device featuring eight channels in a width of just 12 mm. It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads). The module features Push-in CAGE CLAMP connections enabling solid conductors to be connected by simply pushing them in. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP connections.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Depth | 69 mm | |
| Suitable for | 750 series | |
| Width | 12 mm | |
| Height | 100 mm | |
| Number of digital inputs | 8 | |
| Version | output module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
