750-1504 | WAGO

Output terminal for 750 series, Outputs: 16, (W x H x D) 12 x 100 x 69 mm, 750-1504

Order No.: 73F2052
EAN: 4045454905576
MPN:
750-1504
Series: 750
750-1504 WAGO Digital modules

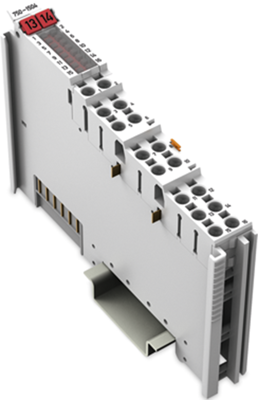

Image may differ
Unit Price (€ / pc.)
151.4394 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
151.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
151.4394 €

Analog and digital output terminals, type Wago 750.

For TS 35 with CAGE CLAMP terminals; Degree of protection: IP 20. Operating temperatures: 0 to +55 °C. Width: 12 mm.

16-channel digital output terminals, type 750-1504.

Positive switching; Number of inputs: 16. Current consumption: 25 mA. Voltage on power contacts: 24 VDC. Signal voltage (0/I): –3.0 to +5.0 VDC/15 to 30 VDC. Input current (0/I): 0.5 A/2.1 to 2.4 mA. Data length: 16 bits.

Type: 750–1504, 16–channel digital output terminal

Technical specifications
Depth 69 mm
Assembly DIN rail
Width 12 mm
Height 100 mm
Number of digital outputs 16
Version output terminal
Suitable for 750 series
Logistics
Country of origin DE
Customs tariff number 85371098
Compliance
Date of RoHS guidelines 3/31/15
Substance description Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead
SVHC free No
RoHS conform Yes
