750-1501 | WAGO

Output module for 750 series, Outputs: 16, (W x H x D) 12 x 100 x 741 mm, 750-1501

Order No.: 44P5189
EAN: 4045454898274
MPN:
750-1501
Series: 750

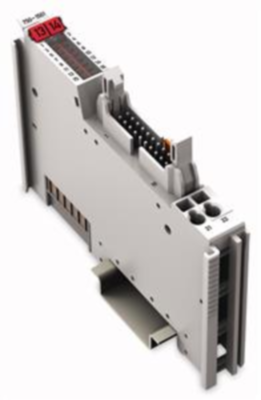

750-1501 WAGO Digital modules Image 1
750-1501 WAGO Digital modules Image 2
750-1501 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
162.7444 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
162.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
162.7444 €

Digital output, 750-1501, WAGO

16-channel digital output, 24 VDC, 0.5 A, Low-side switching, Ribbon cable.

Features

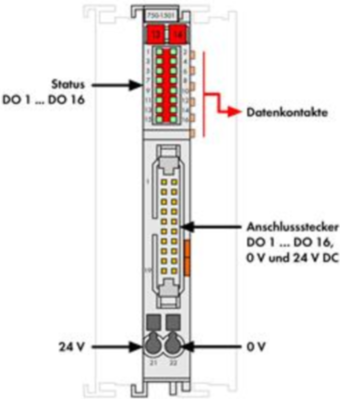

  • This digital output module features 16 channels in a width of just 12 mm
  • It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads)

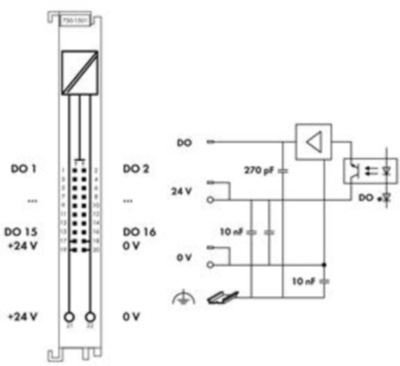

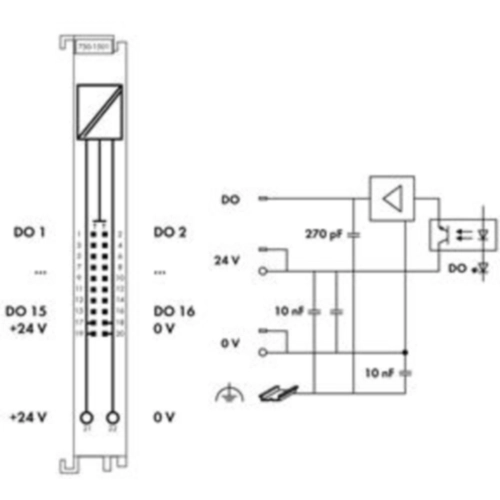

  • The module connects to electronic modules via a 20-pole ribbon cable
  • The 24 V power is fed to the electronic modules via two CAGE CLAMP connectors
  • A green LED indicates the signal state of each channel
  • Field and system levels are electrically isolated
Technical specifications
Filter Property Value
Depth 741 mm
Assembly DIN rail
Suitable for 750 series
Version output module
Width 12 mm
Height 100 mm
Number of digital outputs 16
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Substance description Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
